Description

APPLICATIONS

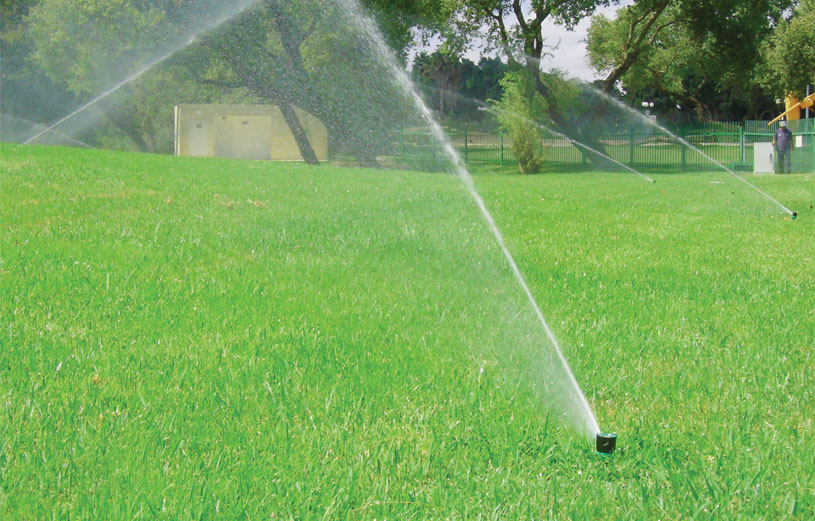

Gear-driven, pop-up plastic sprinkler for commercial Landscaping.

STRUCTURE AND FEATURES
• Excellent performance in a wide range of applications.
• Easy tool-free hold & rotate arc adjustment.

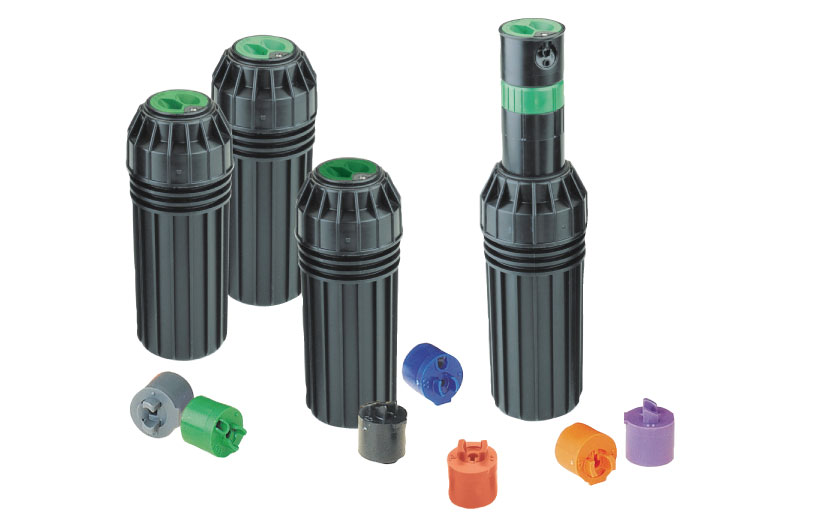

• Color-coded nozzles for easy identification and monitoring.
• Range of nozzles for adaptation of uniform irrigation rates to different irrigation sectors.
• Uniform irrigation – distribution uniformity above CU 88%.
• Quick and simple maintenance •Ribbed canister for anti-vandalism anchoring.
• Ratchet mechanism for safe head rotation.
• Unique nozzle shape for optimum close-to-sprinkler watering.
• Arc memory for one-time arc adjustment – especially designed for public areas.

TECHNICAL DATA
• Pop-up height: 10 cm.
• Arc adjustment range: 40o – 360o.
• Jet height: 2.3 – 3.0 m (according to nozzle and pressure).
• Recommended working pressure: 2.5 – 4.5 bar.
• Spacing: up to 12 m.
• Integral anti-drainage device: 1.2 m.
• 3⁄4” water inlet.
